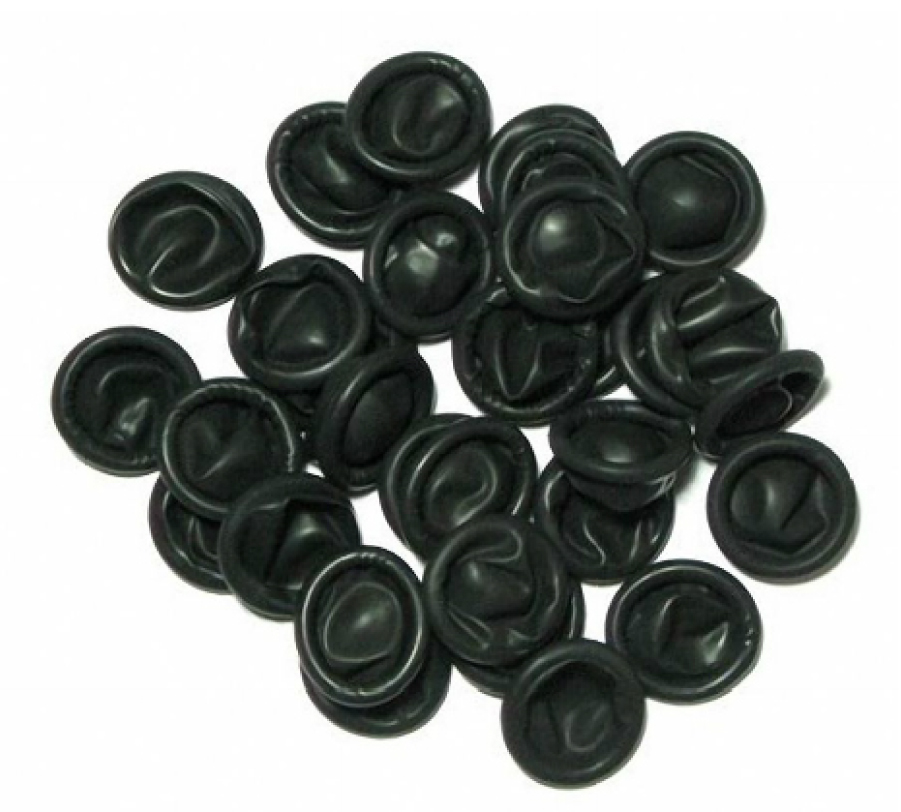

300 Series SD Black Finger Cots

Product Range


>>  301 S Light Powdered Smooth Surface

>>  302 S Powder Free Smooth Surface



General Features

>>  Static Dissipative Finger Cots are designed for handling ESD sensitive devices

>>  Blended antistatic agents with latex to provide consistance discharge of static electricity

>>  Special washing process to reduce ionic contamination and Non - Volatile Residue (N.V.R.)

Product Specification


Dimension 301 S / 302 S / 303 S
  Description Small Medium Large Extra-Large

  Length (mm) :   70 ± 5
  Thickness (mm) :   0.10 ± 0.02
  Flat Width (mm) : 24 ± 2 28 ± 2 30 ± 2 33 ± 2
  Surface Resistivity (ohm/square ) : 106 - 108





Features 301S

>> Treated with minimum level of powder

Features 302S

>> Reduce protein level and remove particles through chlorination process

Features 303S

>> Reduce protein level and remove particles through chlorination process

>> Provide better gripping and sensitivity during assembly parts



Physical Properties

>> Tensile Strength : 24 Mpa (3480 lb. /in2 )

>> Elongation at Break : 600%



Standard Packaging

Packing type : 10 gross per static shielding bag
vacuum packed / 20 bags per carton

Weight : 13 kgs - 15 kgs per carton

Carton Dimension (mm) : 384 x 316 x 332

Special packaging available upon request



Storage

>> Product must be stored in a cool and dry place below 25º C

>> Avoid heat direct sunlight and chemical damages




Shelf Life :   1 year storage condition
